Universal 28mm Ball 3 Sided Bay Window Curtain Pole Black

Universal 28mm Ball 3 Sided Bay Window Curtain Pole Black

From £69.99
Was £74.99 RRP: £101.91
Universal

  • Includes: Ball finials, poles, rings, brackets, corner joints and connector
  • Finish: Black
  • Diameter: 28mm
  • Poles can easily be cut to size using a fine tooth saw
  • For medium weight curtains
  • Delivery: 1 to 2 working days
  • Not suitable for eyelet curtains

Choosing the Correct Pole Length

The size you select refers to the length of the curtain pole only and does not include the decorative finials. Once fitted, the finials will increase the overall width of the completed curtain pole.

Choosing the Correct Pole Length

If you need to shorten the pole, it can be cut to the required length using a fine-toothed hacksaw before installation.

To help you calculate the overall width, the dimensions of the selected finials can be found in the Specification table further down this product page.

Top Tip: For the best appearance, we recommend choosing a pole that extends approximately 15–30cm beyond each side of the window, where space allows. This gives your curtains room to stack back neatly without covering the glass.


Free delivery on orders over £150*

Purchase with Confidence

VISA Mastercard AMEX ApplePay PayPal Klarna Google Pay

The Universal 28mm Ball 3-Sided Bay Window Curtain Pole in Black provides an affordable and practical way to dress traditional three-sided bay windows. Featuring a bold black finish and classic round ball finials, this entry-level metal curtain pole offers a simple, contemporary appearance that works particularly well with modern interiors and darker window fittings.

The black finish creates a striking contrast against light-coloured walls and curtains, making it an attractive choice for living rooms, bedrooms and spaces featuring black window frames, handles or other accessories. Designed for medium-weight pleated curtains, the 28mm pole incorporates specially shaped passing rings and wall-fix brackets, allowing curtains to travel around the angles of the bay without being stopped by intermediate supports.

This bay window pole is supplied as separate components for assembly and cutting to size during installation. The pole sections are not pre-cut to your individual bay window measurements, so you or your fitter will need to measure each section and cut the poles to the required lengths using a fine-tooth hacksaw.

The complete kit includes 28mm metal pole sections, matching black ball finials, passing rings, wall-fix pass-over brackets, two adjustable corner joints and a pole connector.

Passing Rings and Adjustable Corner Joints

The Universal bay window curtain pole uses specially shaped passing rings with a small opening, allowing them to travel over the compatible wall-fix brackets. This enables curtains to move along the three sections of the bay without being obstructed by the intermediate supports.

The passing rings are not nylon-lined. Unlike some higher-priced bay window curtain pole systems, the Universal range uses standard metal passing rings, providing a more economical solution for customers who require a functional bay window pole.

For the best performance, we recommend using curtains with a tightly gathered heading. Curtain hooks should be positioned in the top pocket of the curtain heading tape, allowing the curtains to hang neatly beneath the rings.

This helps reduce downward pressure on the passing rings, which can otherwise increase friction against the pole and brackets. Correctly positioned curtain hooks and a well-gathered heading will help the curtains move more easily around the bay.

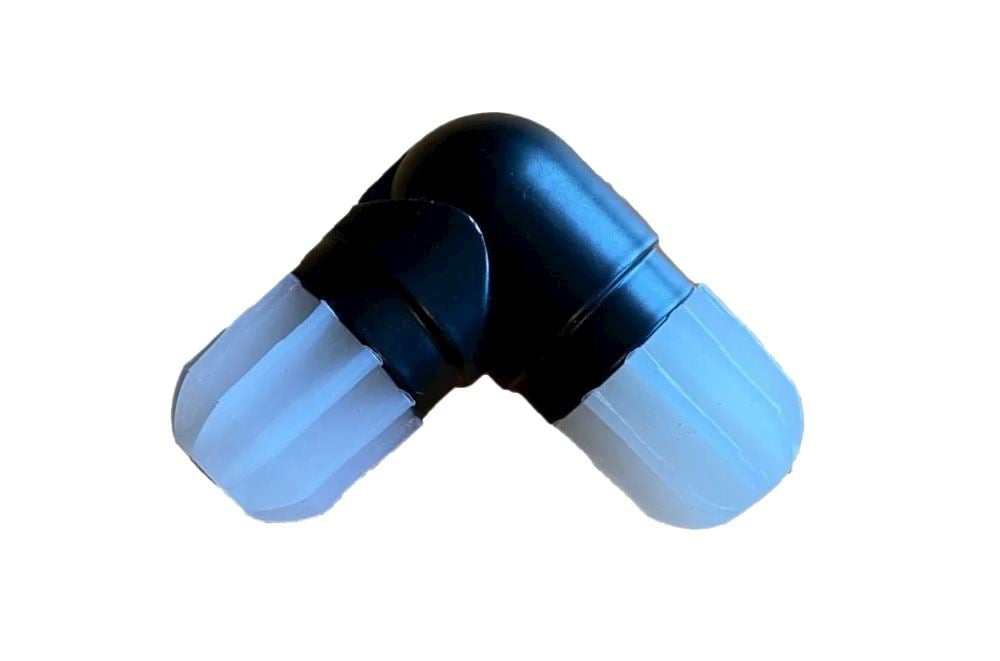

The kit includes two adjustable corner joints that connect the straight pole sections at each angle of the window. These can accommodate internal bay window angles between 110 and 180 degrees, allowing the pole to follow the shape of most traditional three-sided bay windows.

This system is not suitable for bay windows with 90-degree angles, as the corners are too sharp for the passing rings to travel around effectively.

Wall-Fix Passing Brackets

The Universal 28mm bay window curtain pole is supplied with matching black wall-fix pass-over brackets, designed to support the pole while allowing the specially shaped curtain rings to move past the intermediate supports.

Each kit includes seven brackets, providing support across the three sections of the bay. The brackets project approximately 104mm from the wall, allowing space for the curtains to hang beneath the pole.

The brackets are positioned around the bay to support the straight pole sections and help maintain a secure installation. Their simple black design coordinates with the pole and ball finials for a consistent appearance.

This curtain pole is wall-fix only and is not suitable for ceiling fixing. If your installation requires ceiling-mounted brackets, we recommend choosing an alternative bay window curtain pole with a dedicated ceiling-fix option.

Choosing the Correct Size

The Universal 28mm Ball three-sided bay window curtain pole is available in 300cm and 500cm overall lengths, with each size supplied as a combination of shorter pole sections.

The size shown represents the total length of pole supplied across all three sections, rather than the individual width of each section of your bay window.

The pole combinations are as follows:

  • 300cm set: 4 poles, each measuring 75cm

  • 500cm set: 2 poles measuring 100cm and 2 poles measuring 150cm

The 300cm kit includes 28 curtain rings, while the 500cm kit includes 48 rings. Both sizes are supplied with seven brackets and two adjustable corner joints.

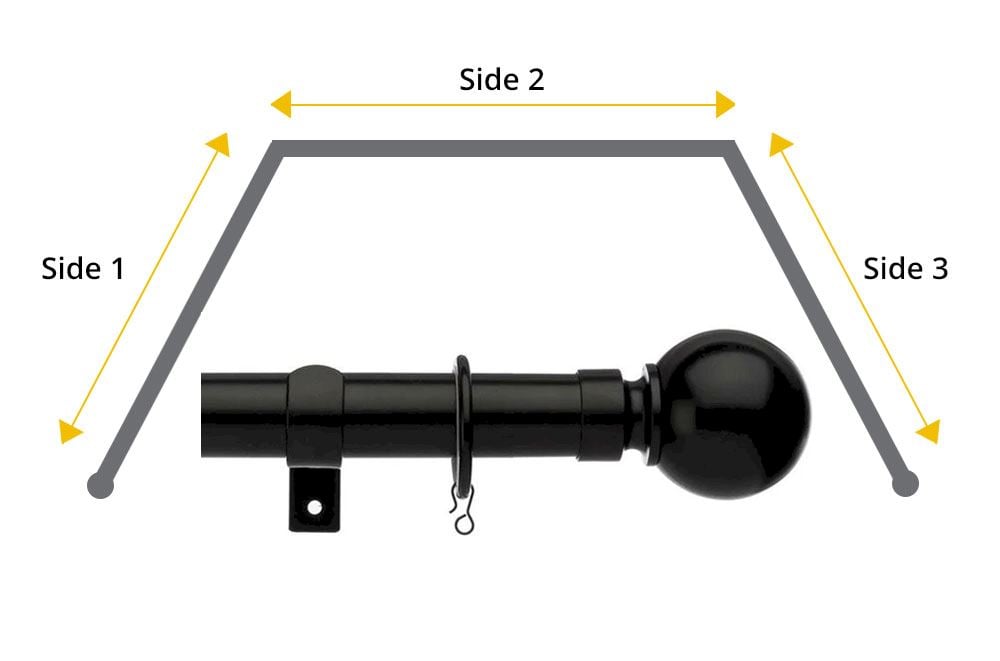

Before ordering, measure all three straight sections of your bay window and check that the individual pole lengths supplied with your chosen kit can be cut and assembled to accommodate your measurements.

The metal pole

Important: This bay window curtain pole is not suitable for eyelet curtains and should not be installed on tall windows where the rings cannot be comfortably guided around the bends. Excessive downward pressure on the rings can increase friction against the pole and brackets, resulting in reduced curtain glide and more difficult operation.

Specification

Pole Length Rings Brackets Corner Joints
300cm:
4 x 75cm
28 7 2
500cm:
2 x 100cm
2 x 150cm
48 7 2
Pole Diameter Finial Length Finial Height Bracket Projection
28mm 68mm 48mm 104mm
