Rolls Neo 19mm Ball 3 Sided Bay Window Ceiling Fixed Curtain Pole Chrome 10% Off!

Hover over the image above to enlarge

  • Rolls Neo 19mm Ball 3 Sided Bay Window Ceiling Fixed Curtain Pole Chrome - Thumbnail 1
  • Rolls Neo 19mm Ball 3 Sided Bay Window Ceiling Fixed Curtain Pole Chrome - Thumbnail 2
  • Rolls Neo 19mm Ball 3 Sided Bay Window Ceiling Fixed Curtain Pole Chrome - Thumbnail 3

Rolls Neo 19mm Ball 3 Sided Bay Window Ceiling Fixed Curtain Pole Chrome

From £134.99
Save Extra 10%
Was £149.99

  • Includes: Poles, finials, rings, joints and brackets
  • Finish: Chrome
  • Diameter: 19mm
  • Poles can easily be cut to size using a fine tooth saw
  • For Light Weight weight curtains
  • Delivery: 1 to 2 working days

FREE Delivery on orders over £125 to UK mainland

Check the colour before you buy?

Posted out with Royal Mail
- please allow up to 7 days for delivery.

Available payment methods

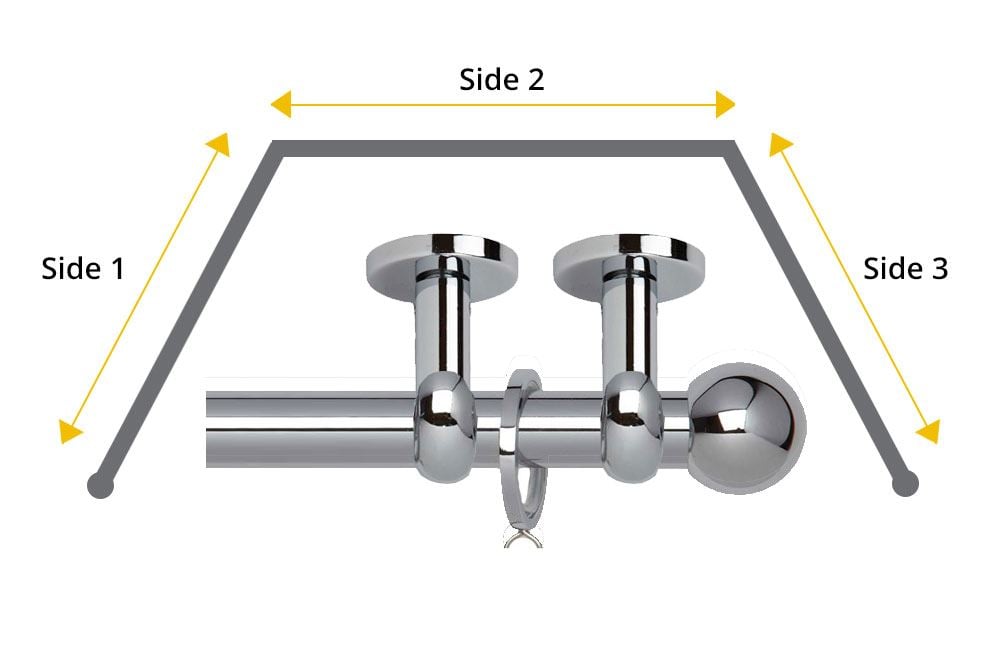

Roll Neo 19mm 3 sided bay window ceiling fixed bay window kit in chrome works perfectly inside a 3 sided bay windows with limited ceiling to window space. This superior brand will look stunning inside a 3 sided bay.

Supplied with poles, finials, rings, joints and ceiling fixed brackets, this pole set is a complete kit to install inside a 3 sided bay.

The pole diameter is 19mm and the lengths supplied in each kit differs. Please measure your bay window correctly and purchase the correct kit which provides the length of pole required for your bay window. All poles will need to be cut down to size, and you are expected to 1 pole to fit 2 sides of the bay window after cutting. The 19mm is reference to the pole diameter and ensure you use the correct weight of curtain of 7kg and no more.

The finials in this kit easily slots onto the ends of the bay and secured in place using the supplied grub screw.

The rings in the kit are rounded and these can be used inside the bay, or you may want to not use them and instead have eyelet curtains. In this instance we will not accept the rings back for a return. The rings supplied are to be used with the 19mm diameter pole only. The number of rings in each kit varies, please see the specification table for further information.

In the kit you will receive only 2 joints. These helps create a curve inside the bay for the 2 inside corners. These joints are best used in 45-degree angles and not 90-degrees. If you choose to use this kit inside a square bay window, you may find that the rings will not smoothly glide past the joint area.

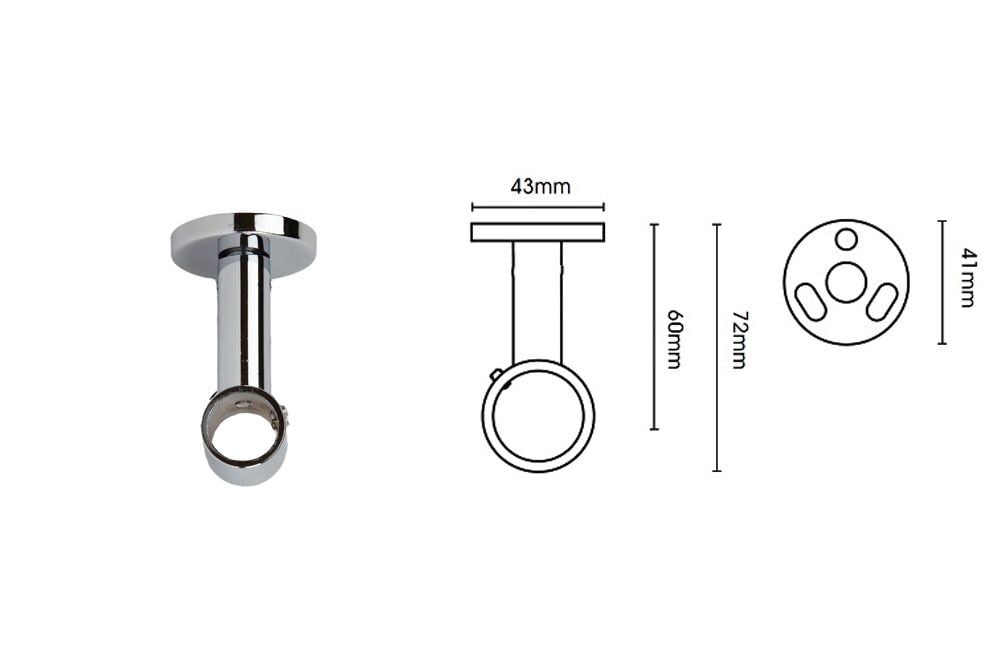

The ceiling fixed brackets require fixing to the ceiling. We strongly advise fixing the brackets to a joist, this is to ensure that the bracket can take the weight of the pole and curtains. The length of the bracket of 7.2cm and will thus work well in spaces of this measurement. The back plate base of the bracket measures 4.3cm. The back plate is fixed in place using the supplied screws and wall plugs. The plate is placed over the back plate before the bracket arm can be threaded and screwed into place. It is then secured using the grub screw. The pole has to be threaded through the loophole inside the bracket. It is best to work from one side of the bay to install the pole, joints and brackets before moving across. In this kit you are supplied with 5 brackets. Of the 5 brackets only 1 is to be situated at the middle of the bay, with the remaining 4 placed on each end of the bay. This will enable the rings to freely move inside the bay. The brackets are non-adjustable.

Please note that the bracket will hold a maximum curtain weight of 7kg in addition to the pole.

Only light weighted curtains can be used in this pole kit. Pinch pleated curtains work best with rounded rings. Alternatively, you can use eyelet or top tab curtains.


Pole Length Rings Brackets Corner Joints
360cm: 3 x 120cm 30 5 2
420cm: 1 x 180cm
2 x 120cm
42 5 2
Pole Diameter Finial Length Finial Height Bracket Projection
19mm 29mm 33mm 72mm
